uClan Combo HD METAL
zoom_out_map
chevron_left chevron_right

uClan Combo HD METAL

uClan Combo HD METAL

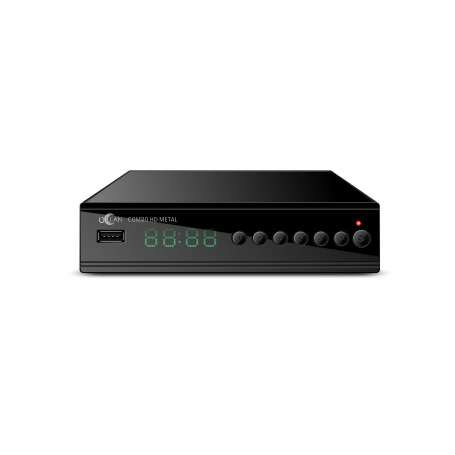

uClan Combo HD METAL is the budget DVBT/T2/С + DVBS/S2 set-top-box in the range of low-cost uClan combo receivers. Of course, the model can play AC3 sound channels, T2-MIб multistream reception and good software support. The device provides reliable signal reception and excellent picture quality of both HD and SD channels. The model uClan Combo HD METAL is executed in a metal case with two USB ports and control buttons on the front panel and LED display. In addition to DVBS/S2+DVBT/T2 channels support, and a convenient media player with PVR functions, developed Internet functions are already the norm. To access the network, you can use the most popular models of USB-WiFi adapters (MT7601 or RT7601), USB-LAN (RTL8152B) or 3G modems.

Specifications:

  • Metal Case
  • Full support for DVBS / S2 / DVBT / T2 (MPEG-2 / MPEG-4 / H.264)
  • DVBT/T2/C Range: 150-860 MHz
  • DVBS/S2 range: 950-2150 MHz
  • Flash 64 Mbits
  • RAM 1024 Mbits
  • Support for DOLBY DIGITAL (AC3)
  • T2-MI/MultiStream Support
  • Fast channel switching
  • 2 x USB 2.0 ports with support for WiFi / 3G / 4G / LAN adapters
  • View IPTV, Youtube, Cinema, Megogo, and other network functions
  • Media player with support for PVR functions
  • Support for many media formats
  • Supported FAT, FAT32 and NTFS formats USB-drive or USB-HDD
  • Superb picture quality with HDMI output
  • Output Resolution: 480i / p, 576i / p, 720p_50Hz / 60Hz, 1080i / p_50Hz, 1080i / p_60Hz
  • SCPC & MCPC reception from Ku / C band satellites
  • Management with DiSEqC 1.0 / 1.1 / 1.2 / 1.3 (USALS), Auto DiSEqC
  • Blind Channel Search
  • Multi-satellite, network, manual search
  • 8 favorite groups
  • Parental control
  • Support for menus in different languages
  • Sort channels by multiple parameters
  • Convenient channel manager, return history (RECALL)
  • 7-day dual-mode program guide (EPG)
  • Software Updates via USB / RS232
  • Convenient learning remote control

CPU
NationalChip GX6605S
Video Output Resolution
Full HD
LAN Ethernet RJ45
No LAN
WiFi (built-in)
USB-WiFi support
Antenna input
DVBS/S2 + DVBT/T2/C (combo)
USB ports
2x USB2.0 ports
Display
With LED display
CA cardreader
No CA card reader
Compression formats
H.264
Dolby support
Dolby Digital AC3
