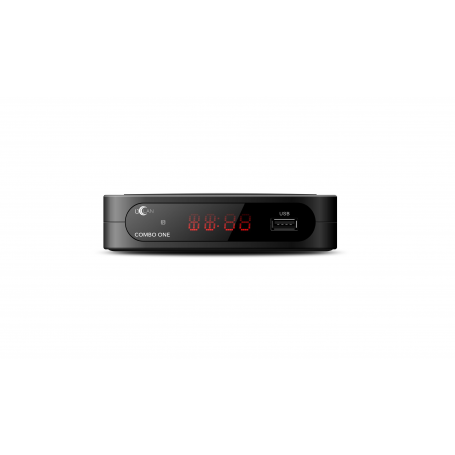

uClan Combo ONE

uClan Combo ONE is the budget DVBT/T2/C + DVBS/S2 set-top-box in plastic housing

uClan Combo ONE is a small brother of uClan Combo HD METAL, new budget model of the DVBT/T2/C + DVBS/S2 receiver in the line of low-cost uClan combo receivers. This model is executed in a compact plastic case. Of course, the model can play AC3 sound channels, T2-MI, multistream reception and good software support. The device provides reliable signal reception and excellent picture quality of both HD and SD channels. The model uClan Combo ONE is executed in a plstic case with two USB ports and control buttons on the front panel and LED display. In addition to DVBS/S2+DVBT/T2 channels support, and a convenient media player with PVR functions, developed Internet functions are already the norm. To access the network, you can use the most popular models of USB-WiFi adapters (MT7601 or RT7601), USB-LAN (RTL8152B) or 3G modems.

Specifications:

  • Plastic Case
  • Full support for DVBS / S2 / DVBT / T2 (MPEG-2 / MPEG-4 / H.264)
  • DVBT/T2/C Range: 150-860 MHz
  • DVBS/S2 range: 950-2150 MHz
  • Flash 64 Mbits
  • RAM 1024 Mbits
  • Support for DOLBY DIGITAL (AC3)
  • T2-MI/MultiStream Support
  • Fast channel switching
  • 2 x USB 2.0 ports with support for WiFi / 3G / 4G / LAN adapters
  • View IPTV, Youtube, Cinema, Megogo, and other network functions
  • Media player with support for PVR functions
  • Support for many media formats
  • Supported FAT, FAT32 and NTFS formats USB-drive or USB-HDD
  • Superb picture quality with HDMI output
  • Output Resolution: 480i / p, 576i / p, 720p_50Hz / 60Hz, 1080i / p_50Hz, 1080i / p_60Hz
  • SCPC & MCPC reception from Ku / C band satellites
  • Management with DiSEqC 1.0 / 1.1 / 1.2 / 1.3 (USALS), Auto DiSEqC
  • Blind Channel Search
  • Multi-satellite, network, manual search
  • 8 favorite groups
  • Parental control
  • Support for menus in different languages
  • Sort channels by multiple parameters
  • Convenient channel manager, return history (RECALL)
  • 7-day dual-mode program guide (EPG)
  • Software Updates via USB / RS232
  • Convenient remote control

CPU
NationalChip GX6605S
Video Output Resolution
Full HD
LAN Ethernet RJ45
No LAN
WiFi (built-in)
USB-WiFi support
Antenna input
DVBS/S2 + DVBT/T2/C (combo)
USB ports
2x USB2.0 ports
Display
With LED display
CA cardreader
No CA card reader
Compression formats
H.264
Dolby support
Dolby Digital AC3
