B6 METAL

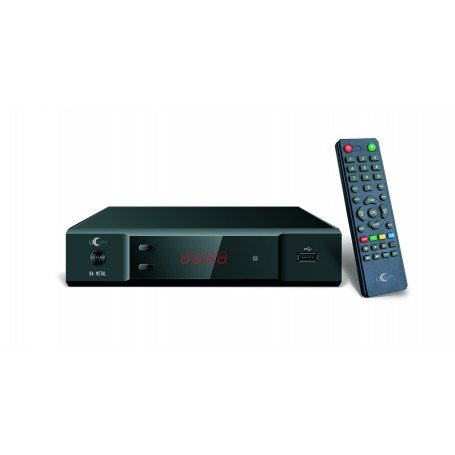

B6 METAL: popular satellite set top box in metal case

Description

Satellite receiver B6 METAL - an affordable satellite receiver in a metal case.

In addition to the low price, the device features excellent image quality on SD and HD channels and also good sensitivity of the receiving section of the input tuner.

uClan B6 METAL

It should be noted: this product can be used as an IPTV / OTT set-top box, links to playlists and playlists themselves can be loaded into the receiver's memory from a USB drive in .m3u format.

Satellite receiver B6 METAL is made on the most popular processor GX6605S, runs under proprietary software.

Metal case, front panel with LED display and control buttons, 2 USB2.0 ports, built-in power supply, RF output in some lots are the main features of this model.



The developers of the uClan software have implemented in this model of the lower price level many functions atypical for this level of receivers, and most importantly: most of the functions were implemented for the first time on the market, then they were repeatedly repeated by other manufacturers. That is why many amateur experimenters have been trying to combine pieces of code for several years using the uClan B6 Full HD software as a base for creating their handicraft "firmware".

Of the typical functions, there is support for the most popular types of USB-WiFi adapters (5370/7601 chips), support for USB-3G modems, USB-LAN adapters and DD AC3 sound. Also, MULTISTREAM streams are scanned and work without problems.

 uClan B6 METAL rear panel

List of supported USB-LAN adapters types: 88772B, SR9800, SR9700, RD9700, RTL8152B, RTL8153

We also note the trouble-free operation of the set-top box with a motor drive, which will delight satellite TV enthusiasts. Even beginners will not be difficult to use the receiver - the multilingual convenient menu is the key to this. The set includes a miniature and handy remote control, which is interesting: the B6 and Denys models are compatible and work perfectly.

Progressive multimedia capabilities support video playback from external USB drives, videos from YouTube, playback of network IPTV streams, cinemas, IPTV and more...

uClan B6 METAL inside

Data sheet
CPU
NationalChip GX6605S
Video Output Resolution
Full HD
LAN Ethernet RJ45
No LAN
WiFi (built-in)
USB-WiFi support
Antenna input
One DVBS/S2 input (satellite)
USB ports
2x USB2.0 ports
Display
With LED display
CA cardreader
No CA card reader
Compression formats
H.264
Sound formats support
DD AC3
RAM memory
1Gbyte
FLASH memory
8Mb
