AC1200 D2

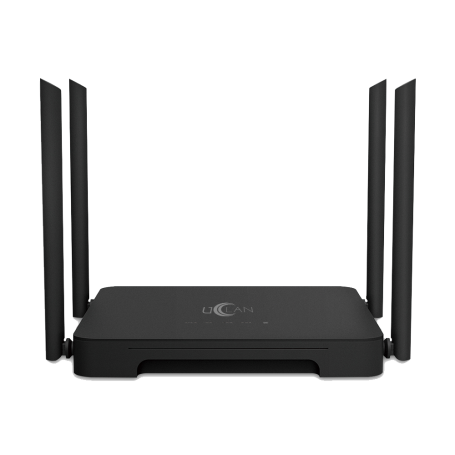

uClan AC1200 D2 - fast dual band Gigabit WiFi router access point


uClan AC1200 D2 - fast dual-band 2.4GHz/5GHz wireless router with Gigabit LAN ports and versatile software upgrade capabilities

High performance dual band router with Gigabit ports and USB3.0 port for NAS. The set of powerful chips in the design of the router is widely known in the router market, due to which this model has perhaps the largest selection of software variations and makes it possible to use the device in any situation.

A powerful CPU MT7621AT (2-core with a clock frequency of 880MHz), paired with 512MB RAM memory, supports the simultaneous operation of up to 250 WiFi clients.

USB 3.0 port allows you to run a home high-speed NAS, as the MediaTek MT7621AT processor provides the highest 5-port speed up to 1000Mbps ethernet LAN network ports.

The wireless part of the router uses 2 chips: MediaTek MT7603EN and MediaTek MT7612EN, which working with 4 powerful 5dbi antennas.

Technical specifications:

Central processor MT7621AT 2-core with a clock frequency of 880MHz

RAM: 512MB

Flash memory capacity: 32MB

USB ports: 1 x USB3.0

Number of external WiFi antennas: 4pcs x 5 dBi

External Antenna Type: Non-removable

Wireless processor 1: MediaTek MT7603EN

802.11 protocols: b / g / n

MIMO config: 2 x 2: 2

Wireless processor 2: MediaTek MT7612EN

802.11 protocols: a / n / ac

MIMO config: 2 x 2: 2

Switch: 4xLAN, 1xWAN

Speed of each port: 1000 Mbps (Gigabit LAN)

Delivery with:

 Router uClan AC1200 D2

 Power adapter: 12v 2A

 Users Manual

Data sheet
