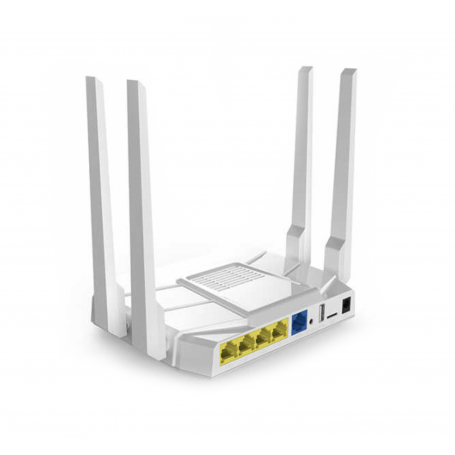

uClan AC1200 D1 - dual band Gigabit WiFi router


uClan AC1200 D1 - fast and affordable dual-band 2.4GHz/5GHz wireless router with Gigabit LAN ports and versatile software upgrade capabilities

High performance dual band router with Gigabit ports and USB2.0. The set of powerful chips in the design of the router is widely known in the router market, due to which this model has perhaps the largest selection of software variations and makes it possible to use the device in any situation.

A powerful CPU MT7621AT (2-core with a clock frequency of 880MHz), paired with 256MB RAM memory, supports the simultaneous work many WiFi clients.

The wireless part of the router uses 2 chips: MediaTek MT7603EN and MediaTek MT7612EN, which working with 4 powerful 5dbi antennas.

Technical specifications:

Central processor MT7621AT 2-core with a clock frequency of 880MHz

RAM: 256MB

Flash memory capacity: 16MB

USB ports: 1 x USB2.0

Number of external WiFi antennas: 4pcs x 5 dBi

External Antenna Type: Non-removable

Wireless processor 1: MediaTek MT7603EN

802.11 protocols: b/g/n

MIMO config: 2 x 2:2

Wireless processor 2: MediaTek MT7612EN

802.11 protocols: a/n/ac

MIMO config: 2 x 2:2

Switch: 4xLAN, 1xWAN

Speed of each port: 1000 Mbps (Gigabit LAN)

Delivery with:

 Router uClan AC1200 D1

 Power adapter: 12v 1A

 Users Manual

Data sheet
